Razor barbed wire
Material:
Galvanized Steel: Offers rust resistance and durability, making it suitable for long-term outdoor use.
Stainless Steel: Provides superior corrosion resistance and strength, ideal for harsh environments or where durability is crucial.
Blade Design:

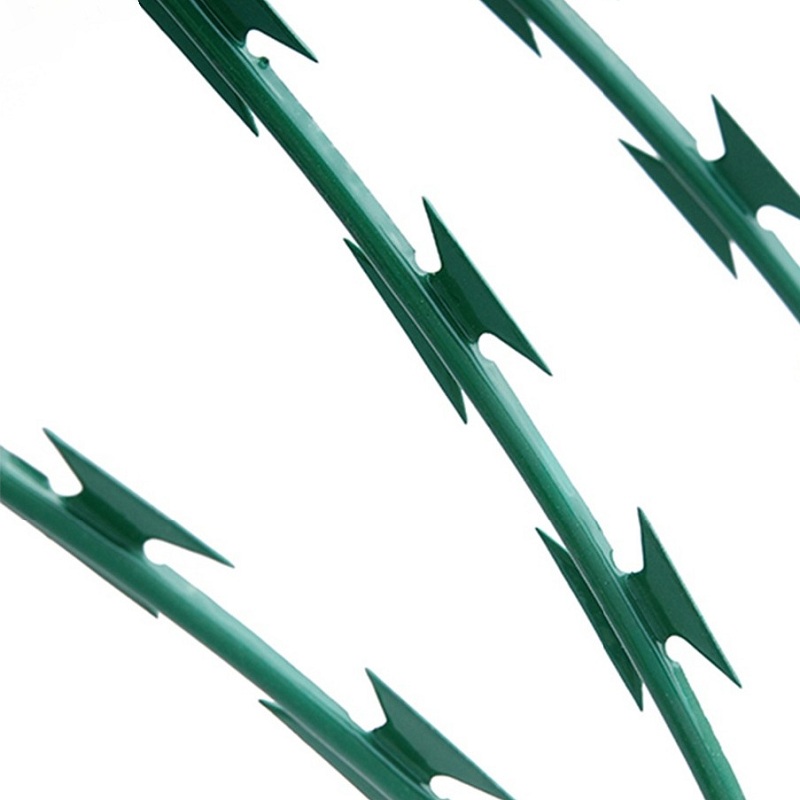

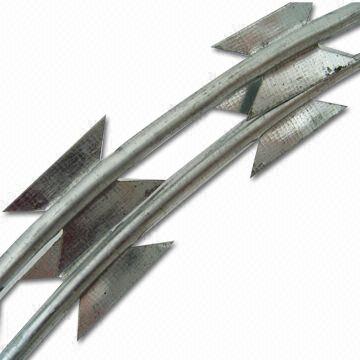

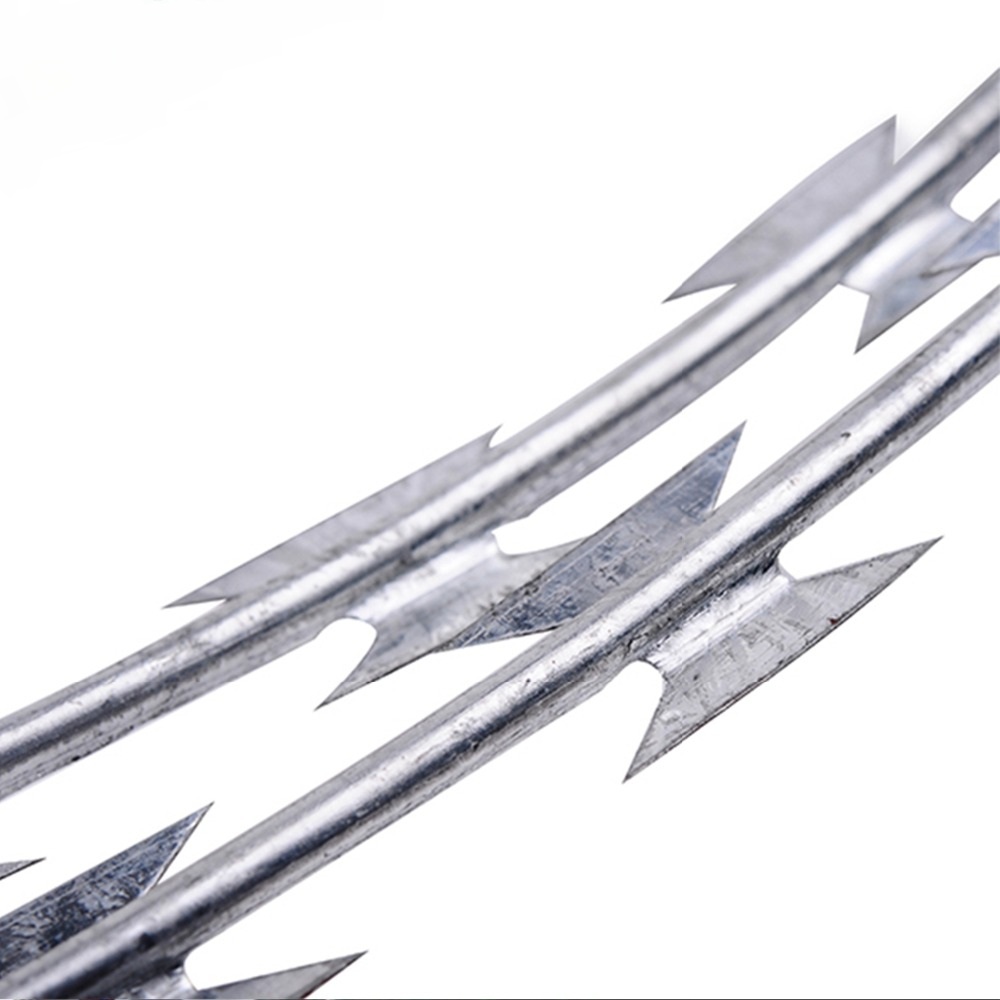

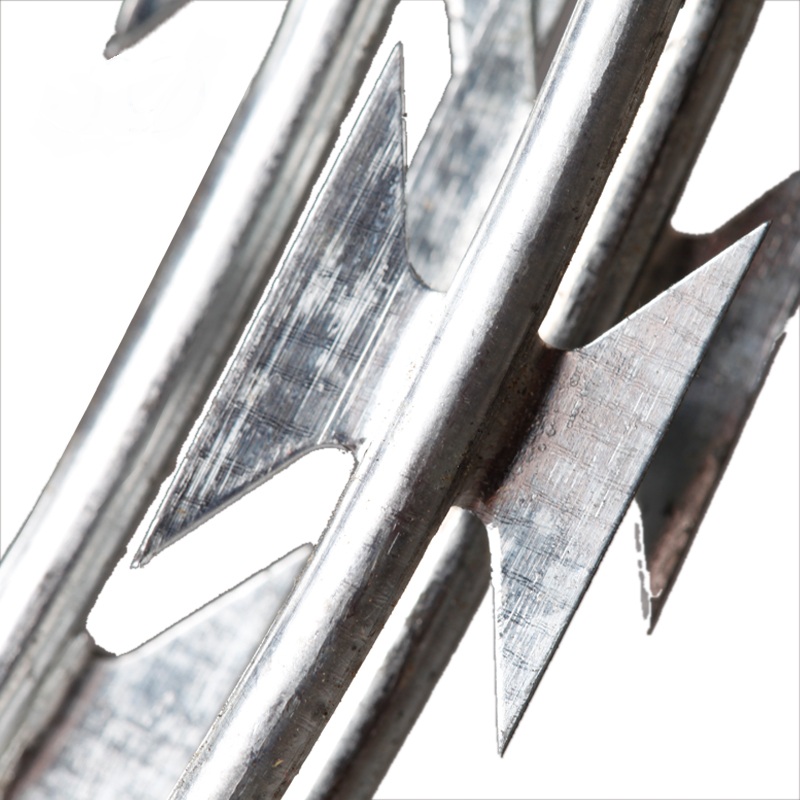

Sharp Edges: The wire is fitted with razor-sharp blades or barbs at regular intervals, designed to cause injury to anyone attempting to climb or cut through it.

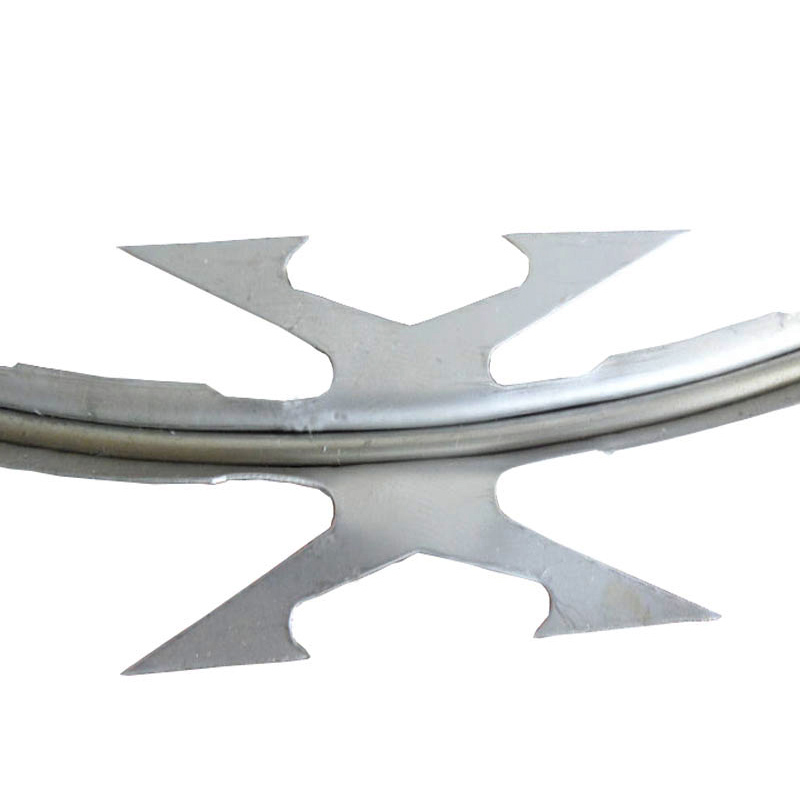

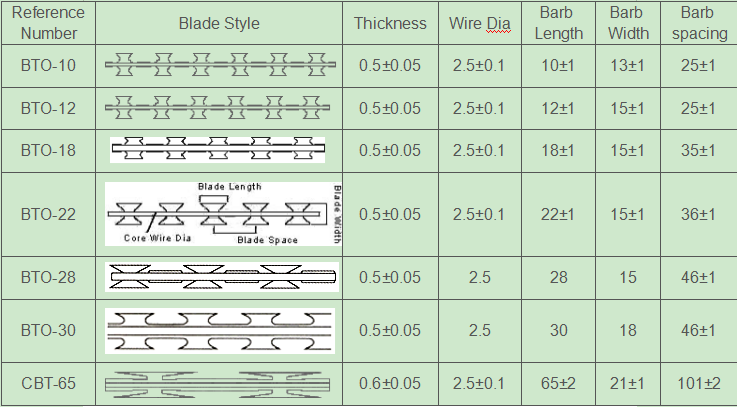

Blade Types: Available in different blade profiles, such as short, medium, or long blades, each varying in size and sharpness.
Wire Core: The central wire is made of high-tensile steel, providing the necessary strength to withstand cutting attempts and tension.
Coil Design:

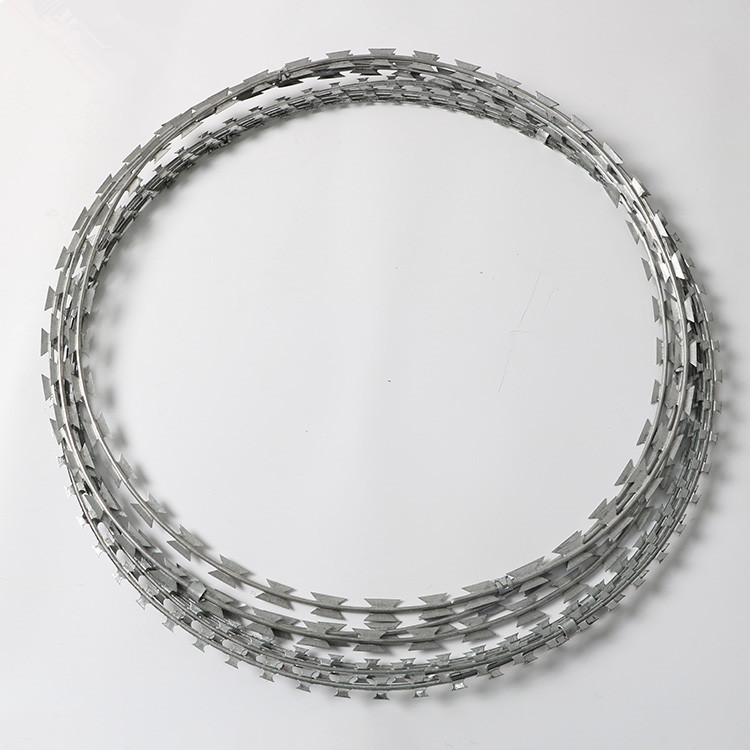

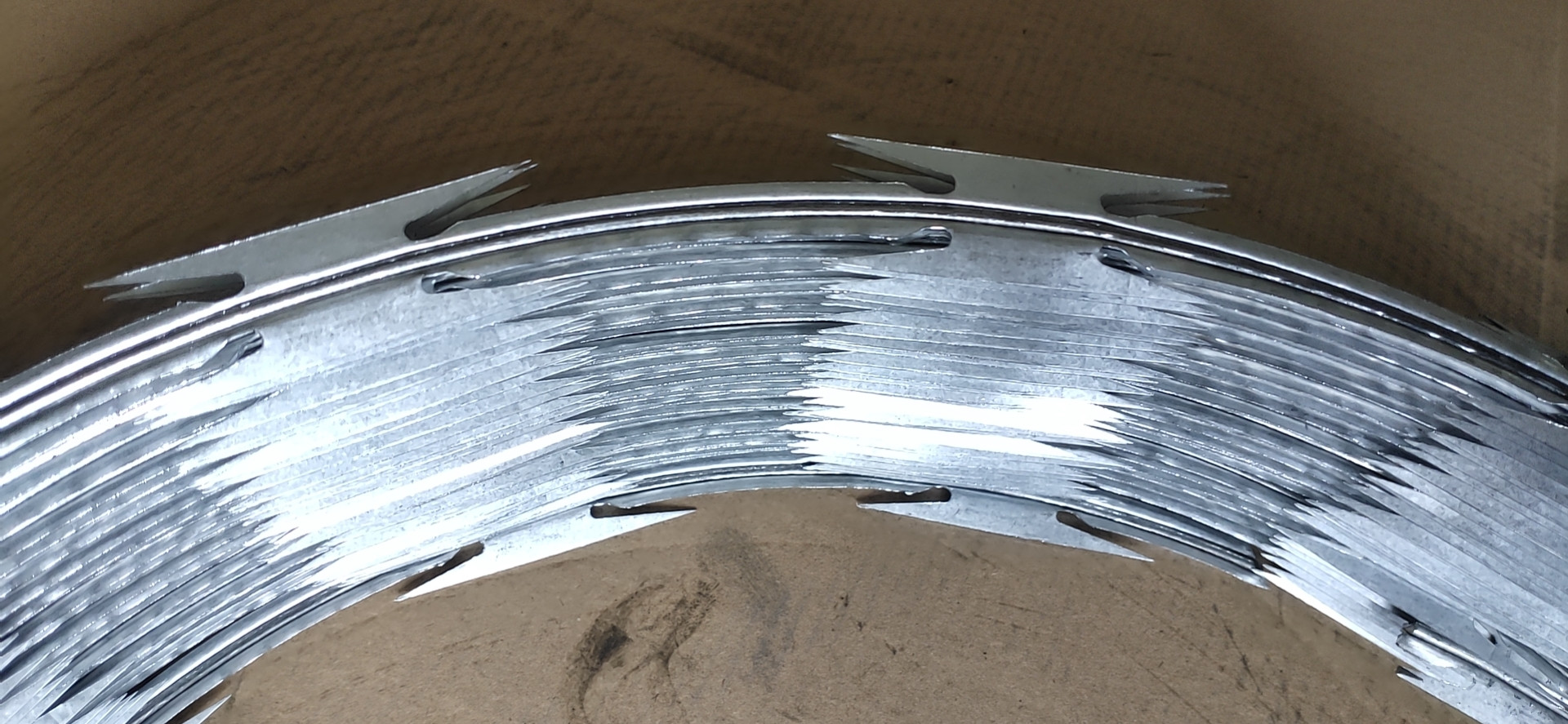

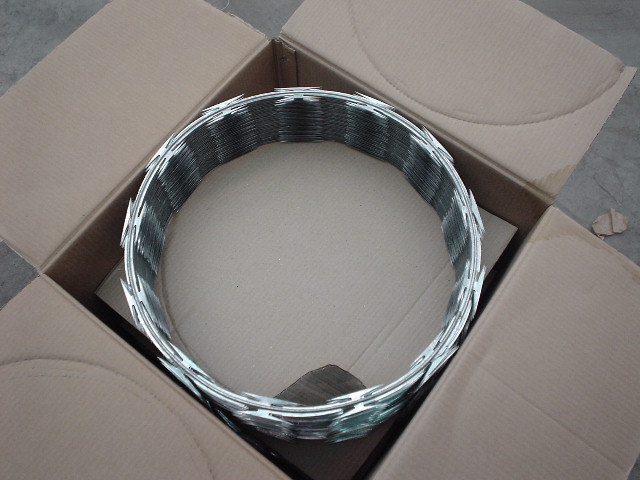

Concertina Coil: The wire is often manufactured in a concertina (coiled) design, where it expands and contracts like a spring. This creates a compact and efficient barrier that can be deployed quickly. The classification of razor coils: razor wire coil without clips and razor wire with clips(usually 3 or 5 clips)

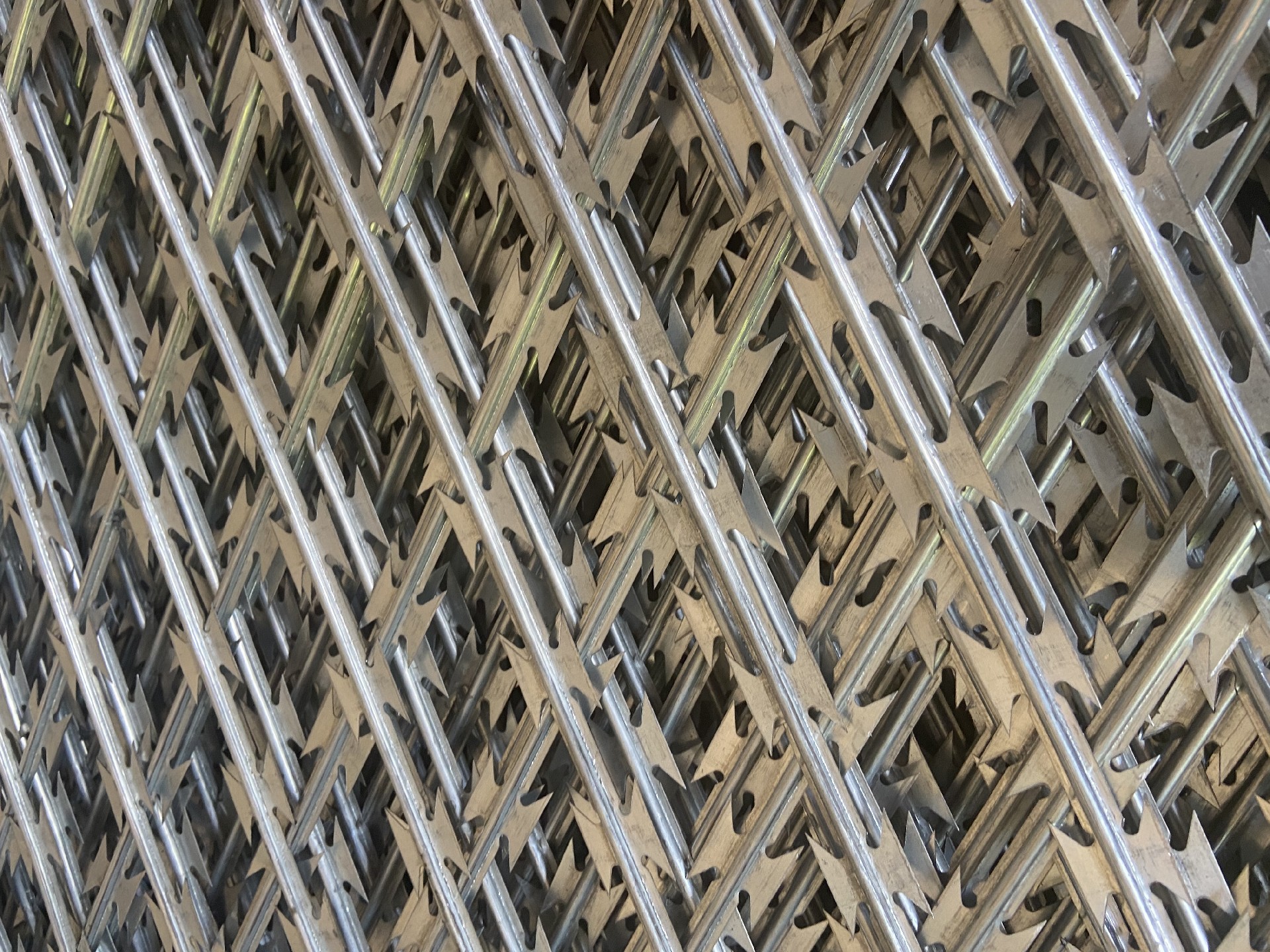

Flat Wrap: Another design option where the wire is flat rather than coiled, offering a lower-profile barrier that is easier to install on fences or walls.
Dimensions: The diameter of the coil typically ranges from 450 mm to 980 mm or more, depending on the level of security required.
Blade spacing and size can vary, with standard spacings providing a balance between security and material use.
Applications:
Military and Government Facilities: Used to secure sensitive areas such as military bases, embassies, and border fences, providing a robust barrier against intrusion.
Industrial and Commercial Sites: Commonly installed around factories, warehouses, and other high-security industrial sites to protect valuable assets and infrastructure.
Prisons and Detention Centers: prison fence. Used extensively to prevent escapes and unauthorized entry, ensuring a secure perimeter.
Residential Security: In high-risk areas, razor wire is sometimes used on top of walls or fences around homes and residential compounds to deter burglars and intruders.
Temporary Security: Employed in temporary setups, such as during events or in disaster areas, where quick and effective security is needed.
Benefits:
High Security: The sharp blades and strong core wire create a highly effective physical and psychological barrier, deterring potential intruders.
Durability: Made from corrosion-resistant materials, razor wire is designed to withstand harsh weather conditions and remain effective over time.
Cost-Effective: Provides a high level of security at a relatively low cost, especially when compared to other security measures like surveillance systems or guards.
Ease of Installation: Razor fence can be installed on existing fences, walls, or as a stand-alone barrier, and it can be deployed quickly in emergency situations.
Razor barbed wire is a critical component in high-security fencing, offering a powerful deterrent against intrusion. Its sharp, unforgiving design and durable construction make it an ideal choice for securing sensitive areas where unauthorized access must be prevented.
Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
450mm | 33 | 8M | CBT-65 | Single coil |
500mm | 41 | 10M | CBT-65 | Single coil |
700mm | 41 | 10M | CBT-65 | Single coil |
960mm | 53 | 13M | CBT-65 | Single coil |
500mm | 102 | 16M | BTO-10.15.22 | Cross type |
600mm | 86 | 14M | BTO-10.15.22 | Cross type |
700mm | 72 | 12M | BTO-10.15.22 | Cross type |
800mm | 64 | 10M | BTO-10.15.22 | Cross type |
960mm | 52 | 9M | BTO-10.15.22 | Cross type |
